A100 HDD

A powerful rig for small volume

The compact and powerful A100 HDD is designed to work in tight areas, powered by a 65 HP Ashok Leyland diesel engine.

The A100 offers 5 tons of thrust-pullback force with rack-pinion system, having rotational torque of 3800 Nm, which helps to work faster.

The additional features like auto-anchoring system, in built rod box, and smart controls with value added safety features.

Apollo single piece forged drill rod provides the optimal range of strength and more flexibility with finished threads.

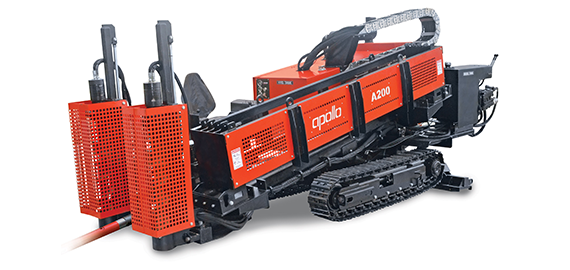

A200 HDD

A compact rig with dynamic performance

The A200 HDD is designed to work in narrow streets. The 65 HP Ashok Leyland engine delivers unmatched performance that operators can feel and appreciate during tough pull back conditions. The A200 features a high quality rack-pinion system with a thrust/pullback capacity of 10 tons. The A200 delivers a torque of 4900 Nm that provides high performance, greater crew productivity and efficiency. The A200 features sealed and lubricated track rollers, carrier rollers and idlers that provide long service life, which keeps your machine in the field and working longer.

Apollo single piece forged drill rod provides the optimal range of strength and more flexibility with finished threads.

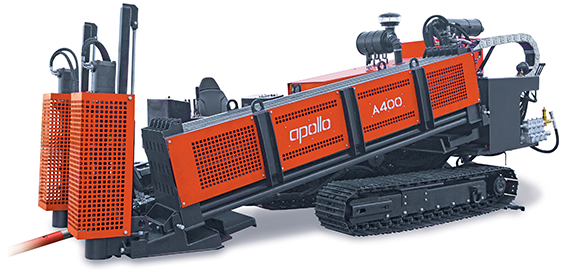

A400 HDD

Better Productivity – Reduced Headaches

Apollo is India’s first HDD rig manufacturer and features a full line of HDD rigs. The A400 HDD provides 12 tons of pulling force and 5500 Nm of torque, which delivers long lasting productivity in a compact, well designed and for better maneuverability. The 130 HP Ashok Leyland engine delivers unmatched performance that operators can feel and appreciate during tough drilling conditions. The A400 is fitted with quality components, which ensure durability over time. The design of the A400 is simple and delivers reliable operation and easeof maintenance. The A400 rig features a thoughtfully designed operator station with smart controls. For rig stability the A400 offers auto-anchoring system.

Apollo single piece forged drill rod provides the optimal range of strength and more flexibility with finished threads.

A600 HDD

An Enhanced Rig with Greater Performance

The A600 HDD features a rack-pinion system powered by a 130 HP Ashok Leyland engine. Along with a pullback capacity of 16.080 Ton and torque of 6000 Nm, the A600 is equipped with a variable flow water pump for a variety of tough drilling conditions. The A600 HDD is equipped with three-variable drilling speeds, with greater rotational speed for enhanced productivity. The A600 also features; automatic rod loading on rack n pinion system to reduce manpower requirements and increase job efficiency. The A600 features sealed & lubricated track rollers; carrier rollers and idlers that provide excellent service life and helps keep the A600 working longer in the field. Based on customer’s input, we have designed the A600 for durability and to deliver results in a highly efficient and reliable manner across a widerange of segments.

Apollo single piece forged drill rod provides the optimal range of strength and more flexibility with finished threads.

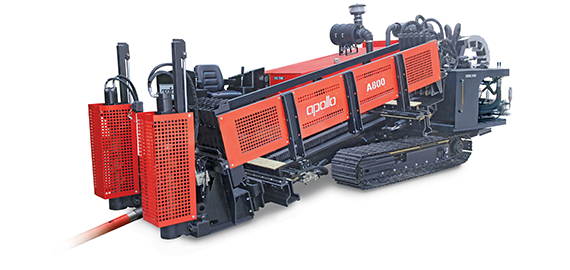

A800 HDD

A Mid-size Rig for Tough Jobs

The A800 HDD is designed for a range of small to medium diameter, short to long distance jobs and soft to hard rock boring projects. The A800 is constructed with a rack n pinion system with 160 HP Ashok Leyland engine. Along with the more powerful engine, pull back force has increased to 22.090 Ton with a torque rating of 6500Nm. This combination of pull back force and torque is ideal for longer distance jobs and larger diameter applications. The A800 is equipped with auto rod-loader system on rack n pinion system to reduce manpower requirements and increase job efficiency. The A800 also features three drilling speeds for different conditions. This model’s proportional operated joystick control is designed to match your natural wrist and arm positions during operation to reduce operator fatigue and provide maximum comfort. The A800 alsofeatures sealed and lubricated track rollers; carrier rollers and idlers that provide excellent service life and helps keep the rig working longer in the field. Additional special features are auto-drill function and half-rotational function (optional), which enhances performance in solid conditions.

Apollo single piece forged drill rod provides the optimal range of strength and more flexibility with finished threads.

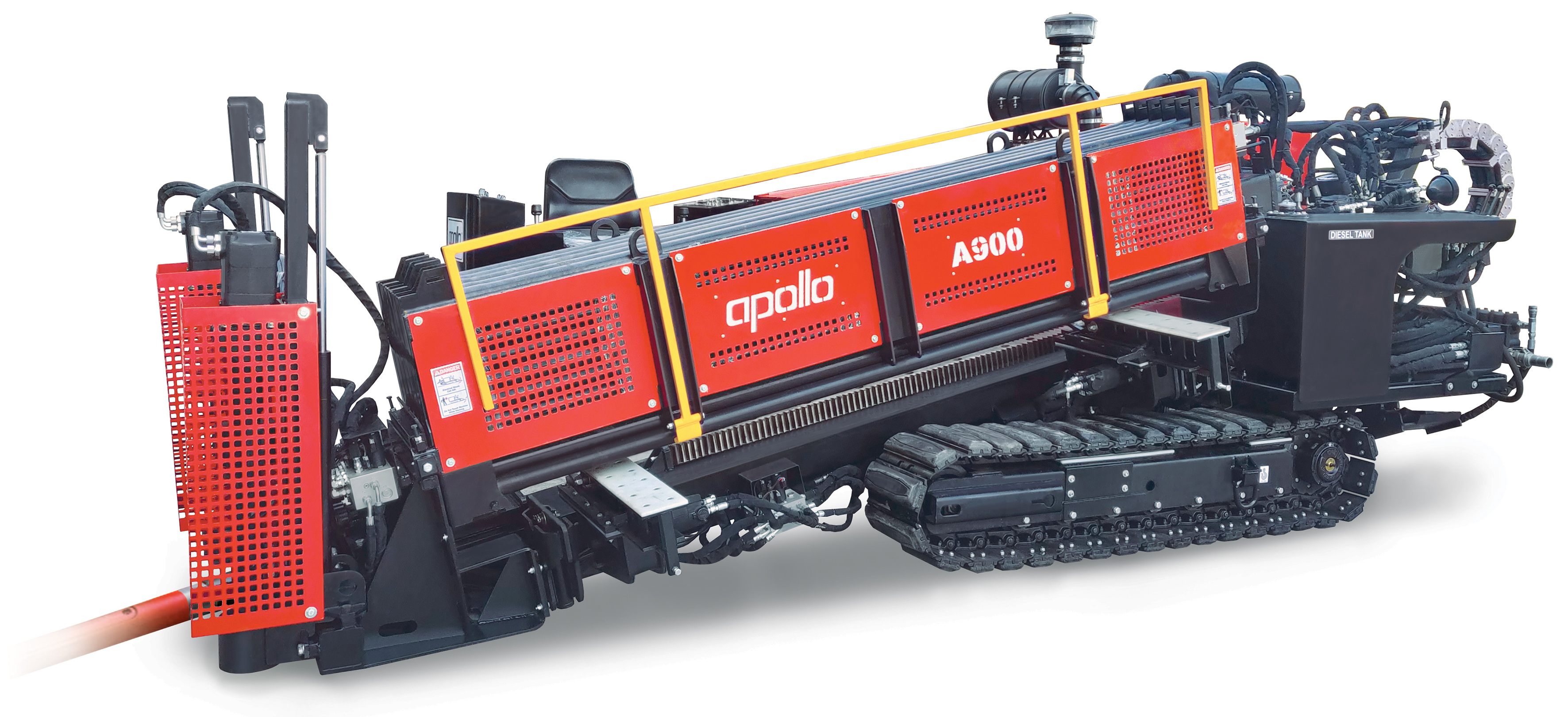

A900 HDD

COMPACT, POWERFUL AND RELIABLE SOURCE FOR PIPELINE JOB

The “APOLLO A900 HDD” delivers the powerful combinations of 34,600 kg of thrust-pullback force with greater torque you need to get the job done. “A900 HDD” is powered by Ashok Leyland 160 HP (119 kw) 6 cylinders with a turbo charger efficiently delivers tremendous power. The rig is equipped with an auto reloading system, and auto anchoring system with safety features which helps you to make your Job faster.

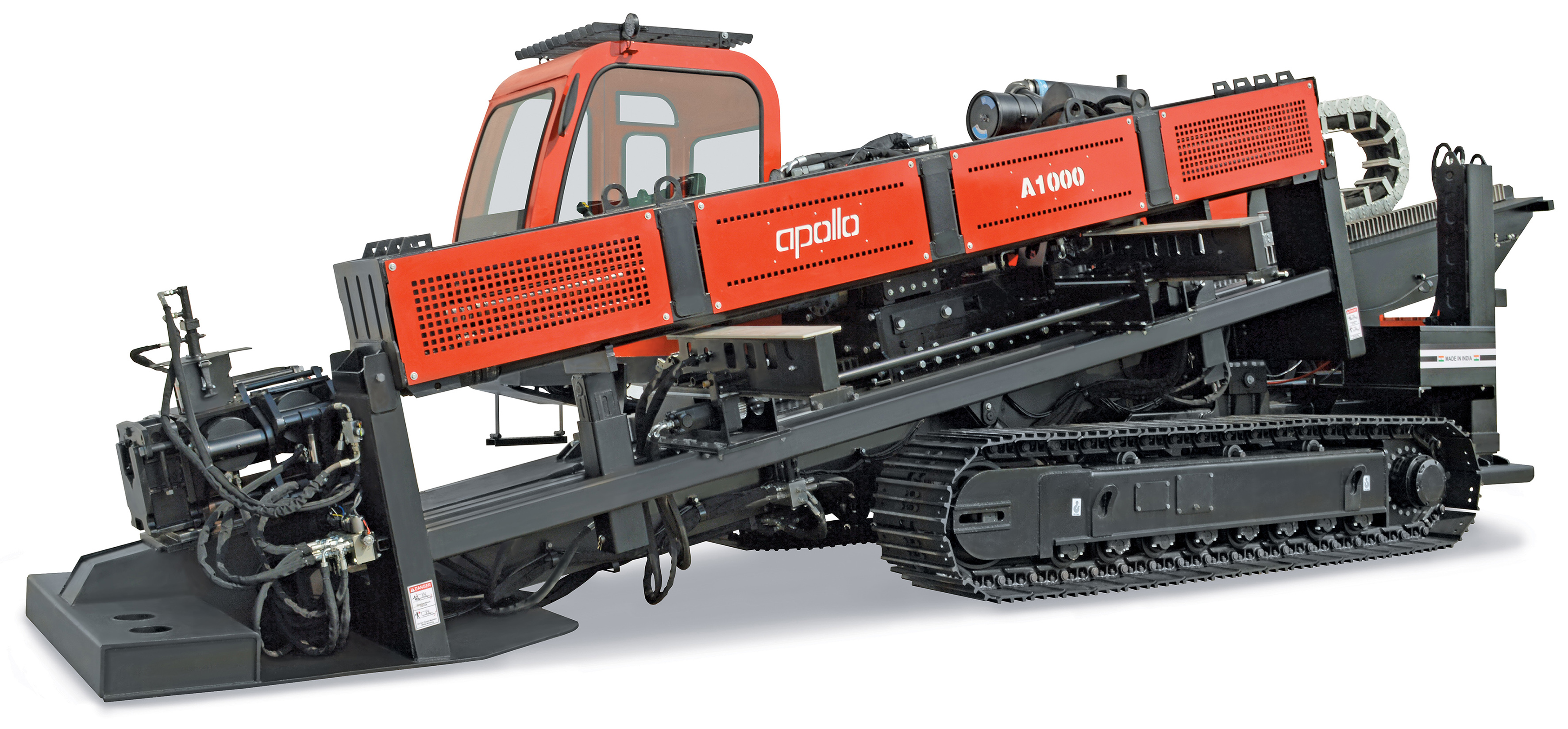

A1000 HDD

IMPRESSIVE SIZE WITH INCREASED POWER

The “Apollo A1000 HDD” is manufactured to cater larger-size diameter along with longer-distance length. The rig is constructed with a quality rack-pinion system and powered by a 220 HP Ashok Leyland engine, with thrust / pull-back force of 50400 Kg with a rotational torque rating of 19789 Nm. Air-conditioned cabin with a rotating operator seat provides a surround view for maximum comfort to monitor the operations.

A1200 HDD

A Large-size Rig for Bigger Job-site

The Apollo A1200 is designed to cater large size underground infrastructure construction projects, equipped to face tough hard ground and difficult job-site conditions. The equipment is constructed with a quality rack-pinion system and powered by a 285hp Ashok Leyland engine. Along with this powerful engine, thrust / pull-back force has increased to 60.506 tons with a rotational torque rating of 23700 Nm that is ideal for longer distance jobs and larger diameter applications. Air-conditioned cabin with rotating operator seat provides surround view for maximum comfort to monitor the operations

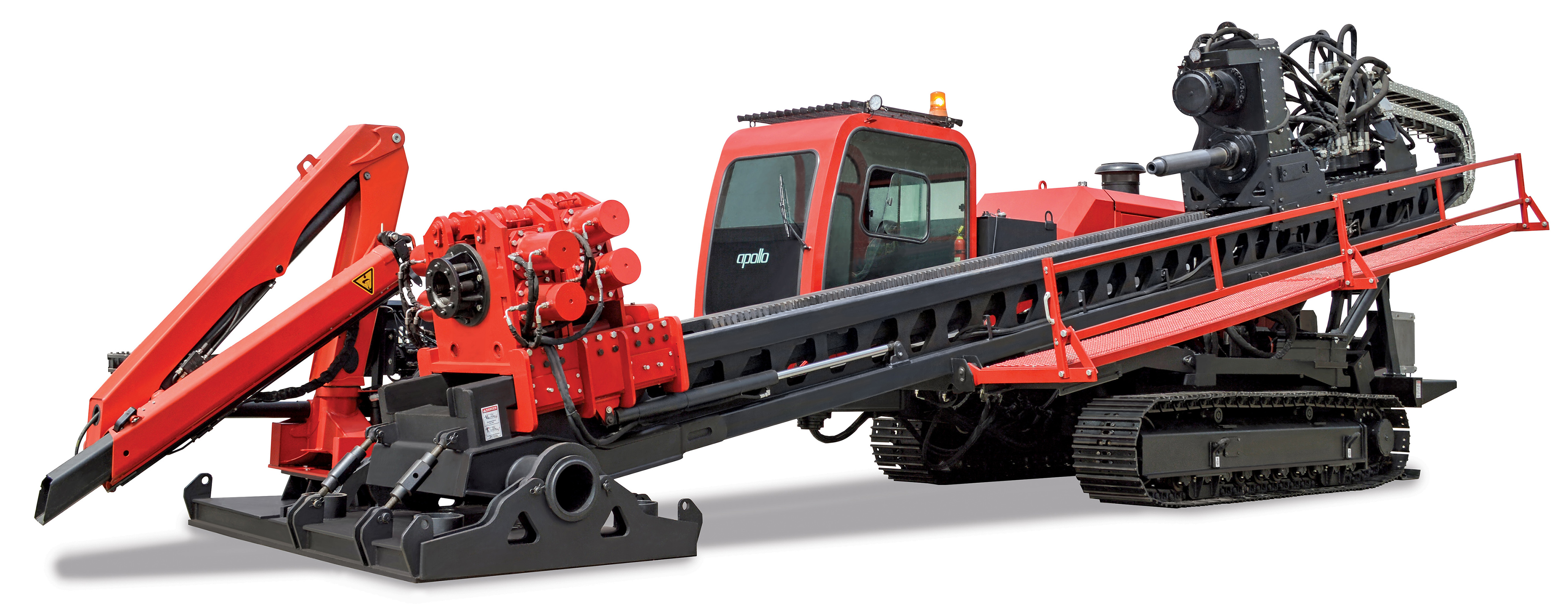

A2000 HDD

Built to take on the Challenge

The all new “A2000 HDD” is loaded with 120,300 kg of Thrust-Pullback force and up to 39477 Nm of spindle torque with great spindle speed to power through in any soil condition. A2000 is engineered to attain maximum productivity, powered by 6 cylinders, 402 HP (300 KW) with turbo charger CAT engine efficiently delivers tremendous power to all drilling functions so that you can achieve the target faster. The “A2000 HDD” featured with auto drilling and auto thrust-pullback along with moving wise system for better performance of your rig.
