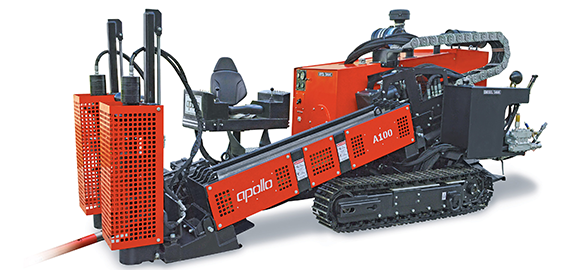

The compact and powerful A100 R HDD is designed to work in tight areas, powered by a 65 HP Ashok Leyland diesel engine. The A100 R offers 5 tons of thrust-pullback force with rack-pinion system, having rotational torque of 3800 Nm, which helps to work faster. The additional features like auto-anchoring system, in built rod box, and smart controls with value added safety features.

Apollo single piece forged drill rod provides the optimal range of strength and more flexibility with finished threads.

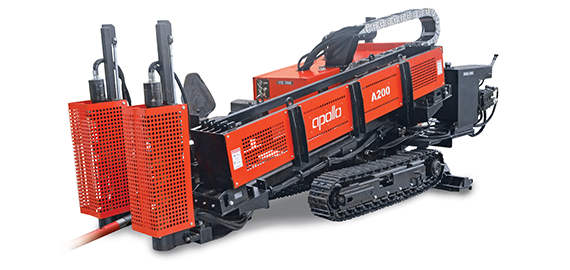

The A200 R HDD is designed to work in narrow streets. The 65 HP Ashok Leyland engine delivers unmatched performance that operators can feel and appreciate during tough pull back conditions. The A200 R features a high quality rack-pinion system with a thrust/pullback capacity of 10 tons. The A200 R delivers a torque of 4900 Nm that provides high performance, greater crew productivity and efficiency. The A200 R features sealed and lubricated track rollers, carrier rollers and idlers that provide long service life, which keeps your machine in the field and working longer.

Apollo single piece forged drill rod provides the optimal range of strength and more flexibility with finished threads.

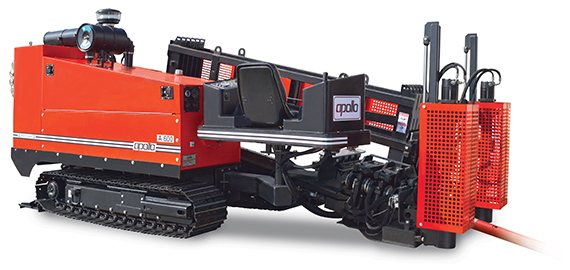

The A600 R HDD features a rack-pinion system with 130 HP Ashok Leyland engine along with a pullback capacity of 16 Tons and torque of 6000 Nm. The A600 R is equipped with a variable flow water pump for a variety of tough drilling conditions. The A600 R HDD is equipped with three-variable drilling speeds, with greater rotational speed for enhanced productivity. The A600 R also features; automatic rod loading on rack-pinion system to reduce manpower requirements and increase job efficiency.

The R Series equipped with advanced electronics and powerful hydraulics, which contribute the greater performance. It also offers comfortable wide operator’s cab (optional). The A600 R features sealed & lubricated track rollers; carrier rollers and idlers that provide excellent service life and helps keep the A600 R working longer in the field. Based on customer’s input, we have designed the A600 for durability and to deliver results in a highly efficient and reliable manner across a wide range of segments.

Apollo single piece forged drill rod provides the optimal range of strength and more flexibility with finished threads.

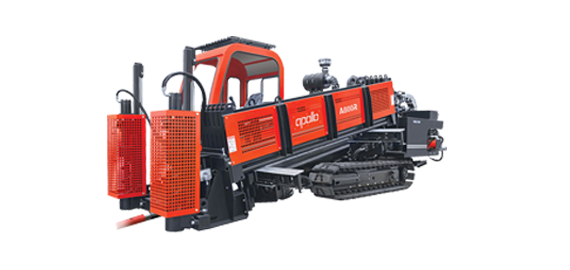

The Apollo A800 R is designed for a range of small to medium diameter, short to long distance jobs and soft to hard rock boring projectsA800 R is constructed with a quality rack-pinion system with 160 HP turbo charged with inter-cooler Ashok Leyland engine. Along with the more powerful engine, pull back force has increased to 20 tons with a torque rating of 6500 Nm. This combination of pull back force and torque is ideal for longer distance jobs and larger diameter applications.

The R Series equipped with advanced electronics and powerful hydraulics, which contribute the greater performance. Italso offersan ergonomically designed, comfortableand spacious AC operator’s cab; the operator seat can be turned 180 degree to provide better visibility. The A800 R is equipped with auto rod-loader system on rack-pinion system to reduce manpower requirements and increase job efficiency. The A800 R also features three variable drilling speeds for different ground conditions. A800 R also comes with proportional operated joystick control, which is designed to match your natural wrist and arm positions during operation to reduce operator fatigue and provide maximum comfort. The A800 R also features sealed and lubricated track rollers; carrier rollers and idlers that provide excellent service life and helps keep the rig working longer in the field. Additional special features are auto-drill function and half-rotational function (optional), which enhances performance in solid conditions.

Apollo single piece forged drill rod provides the optimal range of strength and more flexibility with finished threads.
