The Role of Piling Rigs in India’s Infrastructure Growth
Ever wondered how massive metro lines or sturdy bridges are built on solid ground? With India’s growing need for advanced infrastructure, piling rigs play a key role in making it happen.
But what is a piling rig?

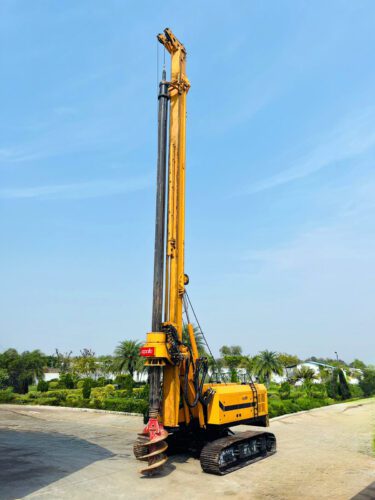

A piling rig is a specialized construction machine designed to drill deep foundations, ensuring the stability of structures. These rigs are essential for creating foundations in challenging terrains, enabling construction projects to stand tall and strong. They are widely used across construction and infrastructure projects, including skyscrapers and large buildings, bridges and flyovers, dams and hydropower plants, metro and railway projects, ports and marine structures, etc.
As the demand for modern infrastructure skyrockets, it’s vital to have reliable, locally made equipment that can handle diverse and challenging terrains. Apollo Techno, a proud “Made in India” manufacturer of piling rigs, delivers high-quality piling rigs designed to meet the specific needs of the country’s growing construction landscape.
The Complete 10 Step Piling Rig Process
Step 1:
Site Investigation
A thorough site investigation is conducted by a piling company to assess the soil composition, groundwater levels, and any potential underground obstructions. This helps identify the challenges and plan for the most suitable piling method.
Step 2:
Piling System Design
Based on the results of the site investigation, an engineer designs a customized piling system to meet the specific requirements of the project. This ensures that the foundation is stable and appropriate for the building or structure being planned.
Step 3:
Drilling the Piles
The next step involves drilling a hole into the ground using either a percussive or rotary method to form a bored cast-in-situ pile. This process ensures that the pile reaches the required depth and stability for the structure’s foundation.
Step 4:
Drilling Mud and Casing
Drilling mud is used to stabilize the hole during excavation, and a temporary or permanent casing is placed to prevent soil collapse. This helps maintain the integrity of the drilled area and ensures smooth operations.
Step 5:
Using Drilling Buckets
For digging through loose or soft soils beneath the water table, drilling buckets are employed. These buckets are particularly effective for extracting soil from areas where regular drilling techniques may not be suitable.
Step 6:
Reinforcement Insertion
After the piles are drilled, steel reinforcement bars (rebars) are inserted into the hole to strengthen the pile. This step ensures the pile has the necessary structural integrity to support the load of the building or other infrastructure.
Step 7:
Filling with Concrete
Once the reinforcement is in place, the hole is filled with reinforced concrete, creating a solid foundation. The concrete is carefully poured to ensure full coverage and a strong, stable base.
Step 8:
Curing the Concrete
After the concrete is poured, it needs time to cure, allowing it to gain strength and set properly. Curing typically takes several days to ensure the concrete reaches the desired load-bearing capacity.
Step 9:
Pile Load Testing
To ensure that the piles will perform as expected under the load, pile load tests are conducted. These tests verify the pile’s ability to bear weight and confirm its suitability for the intended structure.
Step 10:
Trimming and Finalizing the Foundation
Once the concrete has cured and passed testing, any excess pile length is trimmed. Finally, a pile cap or foundation slab is constructed to distribute the weight of the structure evenly onto the piles, completing the foundation system.
Piling Rigs: The Top 6 Advantages
Safety
Using piling rigs helps reduce the risk of accidents compared to manual or traditional piling methods, ensuring a safer construction environment.
Time Efficiency
Piling rigs speed up the construction process by drilling and installing piles more quickly than traditional methods.
Versatility
They can be used across a wide range of soil conditions, from soft clay to hard rock, making them suitable for various types of construction projects.
Cost-Effectiveness
Though the initial investment may be higher, the durability and reliability of the piles, along with reduced construction time, can make piling rigs a cost-effective solution.
Adaptability to Challenging Terrain
Piling rigs are ideal for tough or uneven terrains, including coastal areas, rocky ground, or regions with high groundwater levels.
